Retriever Unit Instructions

The unique corridor baffle limiter prevents larger general waste items from entering the unit. The patented designed units have been proven to reduce cross contamination with general waste by up to 99%.

 Our dog waste stations are fully Australian made.

Step 1

Tie Compostable dog bag and slide into front of corridor on bin.

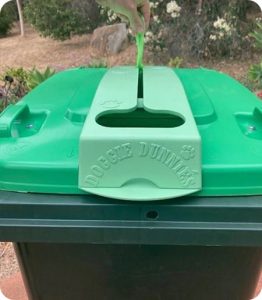

Step 2

Slide bag along corridor.

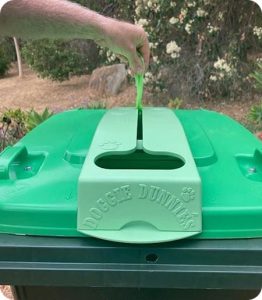

Step 3

Release bag and Drop into trap door at end. It’s that simple!

Step 4

Bags are then collected for green waste recycling.

Unit Specifications

Model: Retriever Lid

The Retriever Lid is a custom designed, operation specific SULO (wheelie bin) lid attachment that allows for only the receipt of dog waste, to eliminate mixed waste and cross contamination of usable waste.

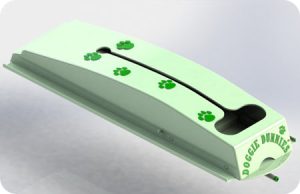

Retriever Lid 01

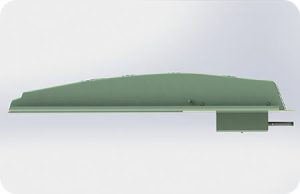

Retriever Lid 02

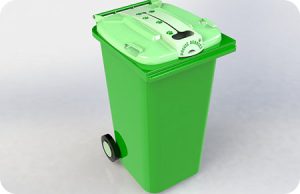

240L Wheelie Bin

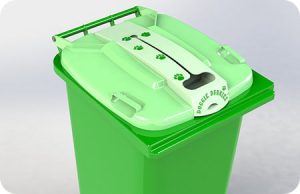

Fitted to Wheelie Bin

Bin Size

640mm long
84mm high
208mm wide.

Complete Sub Assembly Weighs, Approx: 1.5Kgs

  • Fits majority of 240L Sulo bin lids or similar
  • Pre-assembled unit

Design Features

  • Ergonomic Low Profile design
  • Lightweight
  • Designed to exclude water
  • User friendly
  • Low Maintenance design and materials
  • Patented Design to eliminate up to 98% cross contamination with general waste

Materials & Hardware

  • Moulded Plastic
  • Colour options Available to match SULO Bins
  • Lightweight Design
  • Stainless Steel Fasteners
  • Supplied with bin lid locking mechanism / replacement bin lid pins supplied

Cleaning / Maintenance

  • Cleaning at Intervals of 3-6 months.
  • Can be High Pressure Washed
  • Do not use harmful Chemicals
  • Cleaning Instructions supplied

Surface Finish Options Available

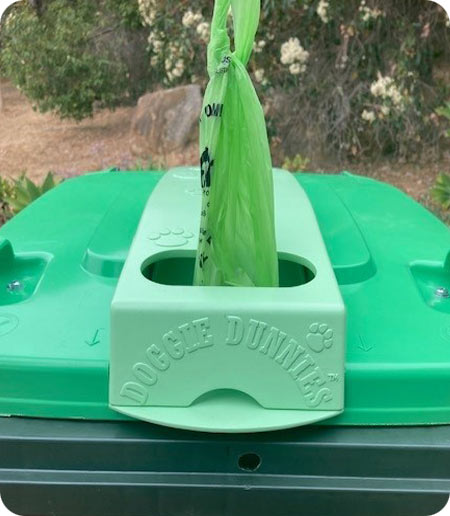

Moulded plastic, Smooth Matt finish

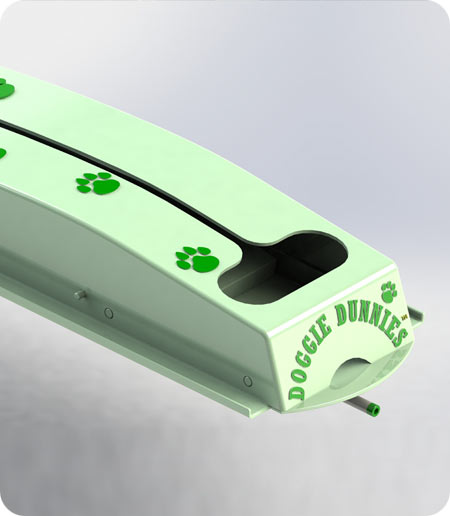

Embossed Logo and Paw Prints

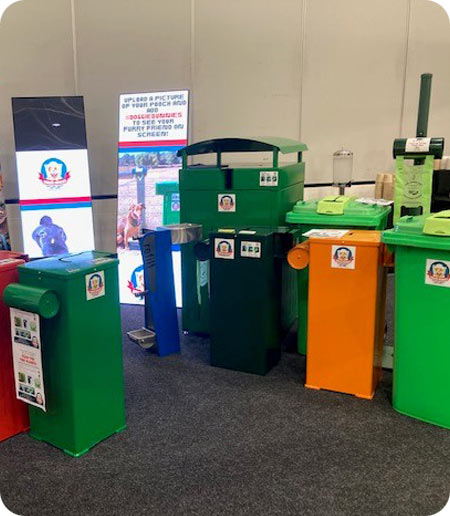

Pantone colour options to match most 240L Bins
